Starter Battery-RPC CORPORATION

Feature of RPC Starter Battery

Excellent Saftey Performance: Using Li-Fe cells. No fire, no explosion after a destructive testing.
Environmental-Friendly: Pollution-Free.
Ultra-light in Weight: 1/4 weight lighter than SLA battery.
Long Cycle Life: Operation can be 7 to 9 years.
Charge Fast: Charging time will be around 0.5~1 hous.
Low Self-discharge: still can be worked in 2～3 years if storage separately.

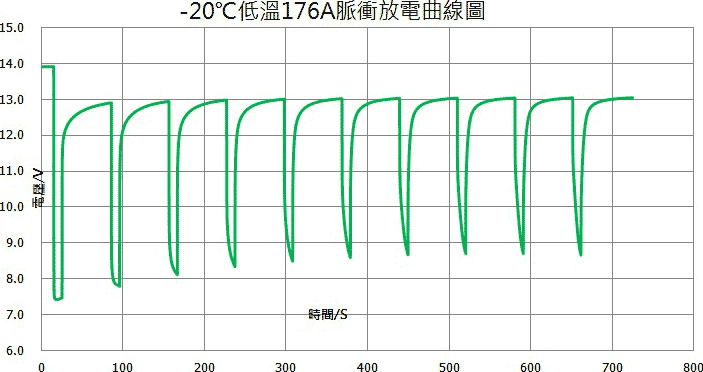

Excellent Performance of High & Low Temertature: Operating temperature Will be during -20℃~70℃.

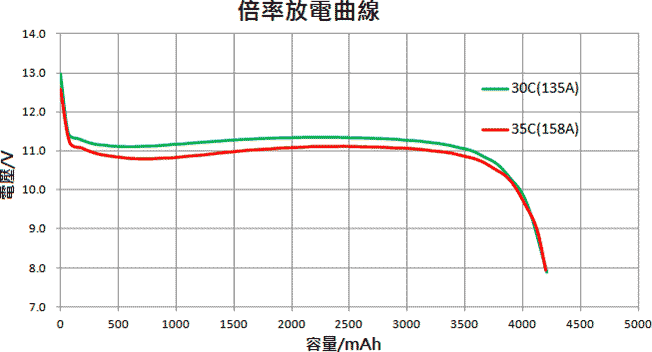

High discharge rate: can be 3500W/kg, 10 times better than SLA battery.

※Remark: All of the above characteristics must be used in accordance with RPC's specifications.

Parameters of Starter Battery
Series	Model	Dimension （LWH）	Rating	Weight(g)	Applications
EN2	EN2-2500	1146190	12.8V 2.5AH	540±25	Motorcycle less than 150CC
EL3S	EL3S-3000	1147085	12.8V 3.0AH	660±30	Motorcycle 250CC
EL3	EL3-3000	1147090	12.8V 3.0AH	660±30	Motorcycle 250CC
EL3	EL3-4500	1147090	12.8V 4.5AH	800±40	Motorcycle 310CC
EL1	EL1-6000	14967106	12.8V 6.0AH	1025±50	Motorcycle 400CC
EL1	EL1-7000	14967106	12.8V 7.0AH	1200±60	Motorcycle 500CC
EN3S	EN3S-3000	1147085	12.8V 3.0AH	660±30	Video Camera
EN3	EN3-3000	1147090	12.8V 3.0AH	660±30	Video Camera
EN3	EN3-4500	1147090	12.8V 4.5AH	800±40	Video Camera
EN1	EN1-6000	14967106	12.8V 6.0AH	1130±60	Video Camera
EN1	EN1-7000	14967106	12.8V 7.0AH	1200±60	Video Camera

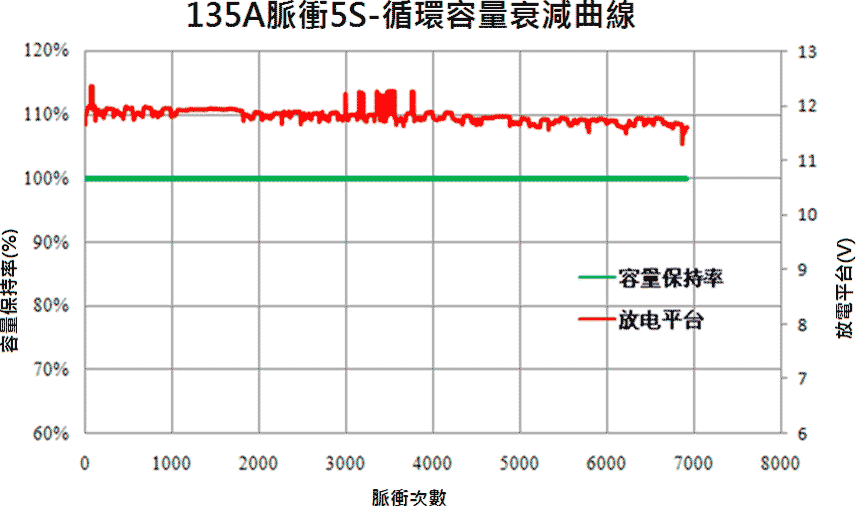

Long Cycle Life: Low capacity reduced after 6900 cycles,
the average voltage is still over 11.5V

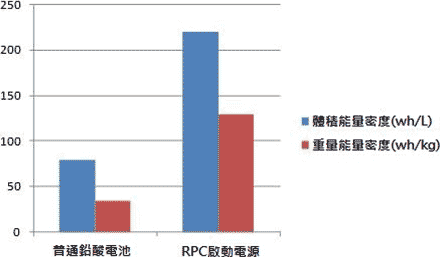

High Power Density: As Same capacity, 1/3 volume and 1/4 weight
of SLA Battery.
